Altair 8800 System (1975)

This is it folks, the original MITS Altair 8800 (approx serial number 3000). It was assembled from the original 1975 chassis and REV-A CPU board and upgraded later to include monitor board, extra memory, printer board and some others. The main breadboard was also probably upgraded as it is copyrighted 1977.

The greatest thing about this system is that it works! Instructions can be entered with switches at the front and then run (now I just have to break out my 8080 binary instruction manual!).

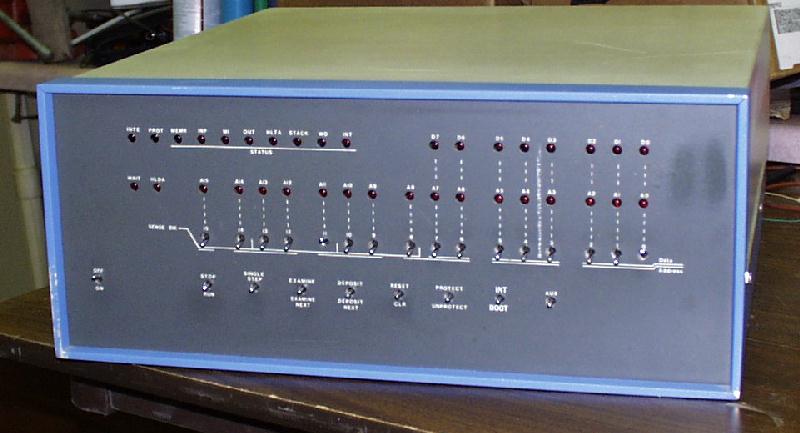

The Altair 8800

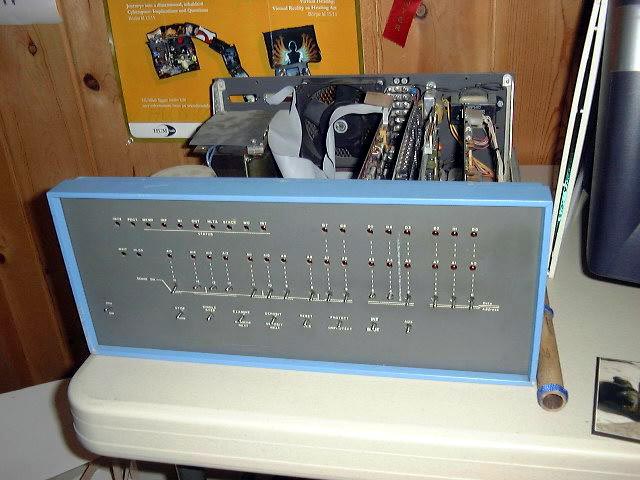

With the cover off

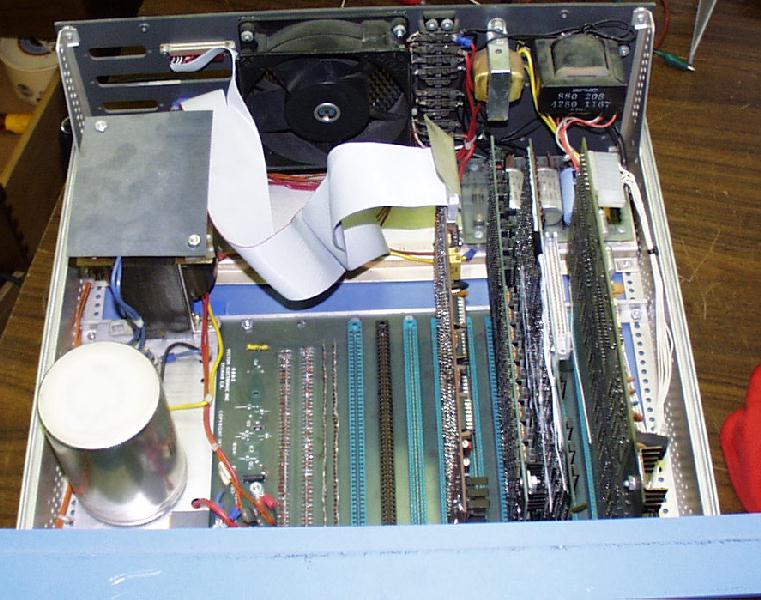

Looking inside

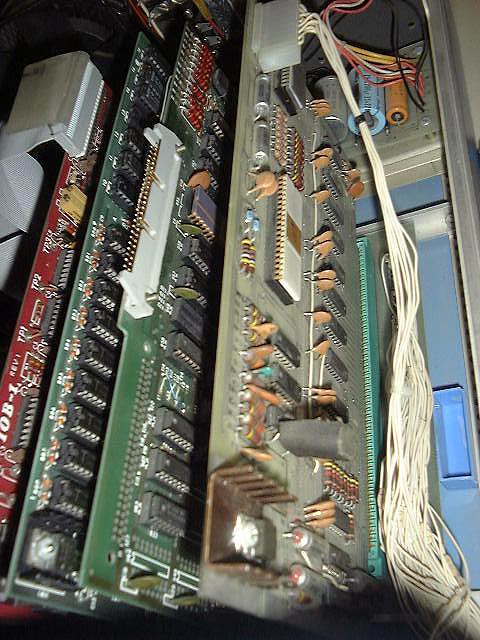

CPU Board REV A, Intel 8080
System powered on and lit up

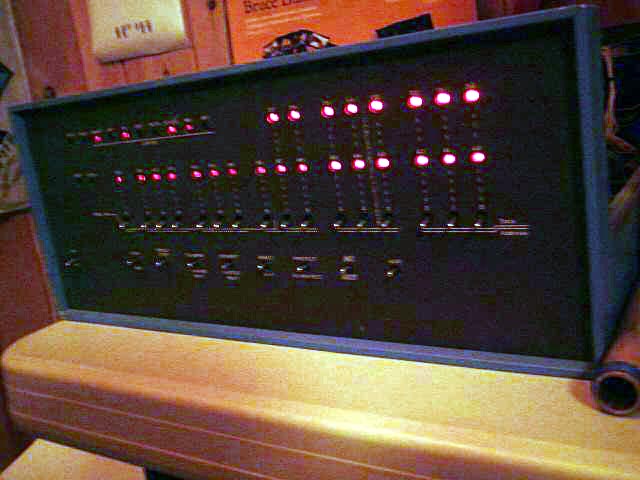

Showing a full set of working panel lights

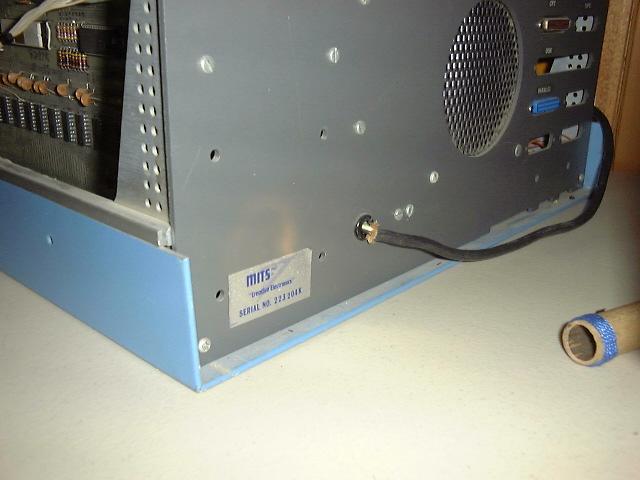

Rear of case with ports

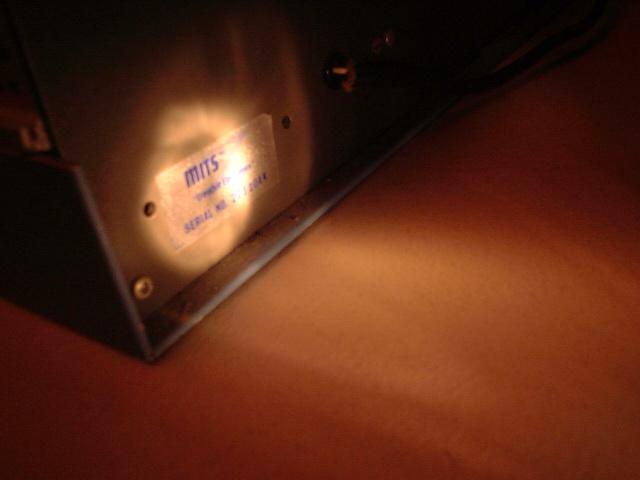

Serial number 3204

One last look!

More on the Altair 8800 from DigiBarn Visitor Valerie Kramer:

A link in WinXPNews brought me to your site and I've just started exploring it. I enjoyed seeing the Altair 8800 pictures. If possible, I think it would be even better to see one with power on. It just doesn't look as interesting with the lights out. :)

I had an Altair 8800 back in the "good ol' days". A friend and I went to "The Computer Store" in Los Angeles and we each bought one. I remember my carton was numbered "13". I don't know if that was lucky or not but I did get it working eventually. I think I still have some photos somewhere though

I sold the unit off long since. As I recall, I couldn't afford a video card for output (or maybe there were none available yet) so output was via a parallel port to a "TV Typewriter" project I had built from plans in Popular Electronics. Later I switched to an ASR33 teletype that I found at a surplus place in Chatsworth.

Despite the huge transformer and gigantic electrolytic capacitors in the power supply, it wasn't nearly as stable as modern switching power supplies.

I learned that if I plugged the system into the wrong outlet in the house, the system would crash every time the refrigerator came on. It also proved unusable when I tried to demonstrate it in my office at a manufacturing plant. Sometimes the "good 'ol days" weren't all that good!

Rebooting was a royal pain. To load the BASIC interpreter, one had to load in a 21 byte sequence via the toggle switches then run it and hope it loaded correctly which it did about every third or fifth try. I finally sat down and wrote a bit of assembler code to allow me to load memory from the keyboard or to run the standard boot program from ROM. I burned the program one bit at a time into a PROM chip using a 6V battery. I think I had a few other useful options in this monitor-type program as well. It sure made the Altair a lot more friendly!

By the time I was done playing with it, my Altair had floppy disk drives and other refinements. Like most, I have shed most of these pieces of history over the years. I currently still have a couple of CP/M systems boxed up (one including Valdocs) and I keep a couple copies of IBM DOS 1.0 for my retirement fund. :)

Have a a story or special insight on the Altair? Send it to us!
